MC4 Y branch connector for parallel solar panel connections - Multibranch Y Connector parallel adopter
Description

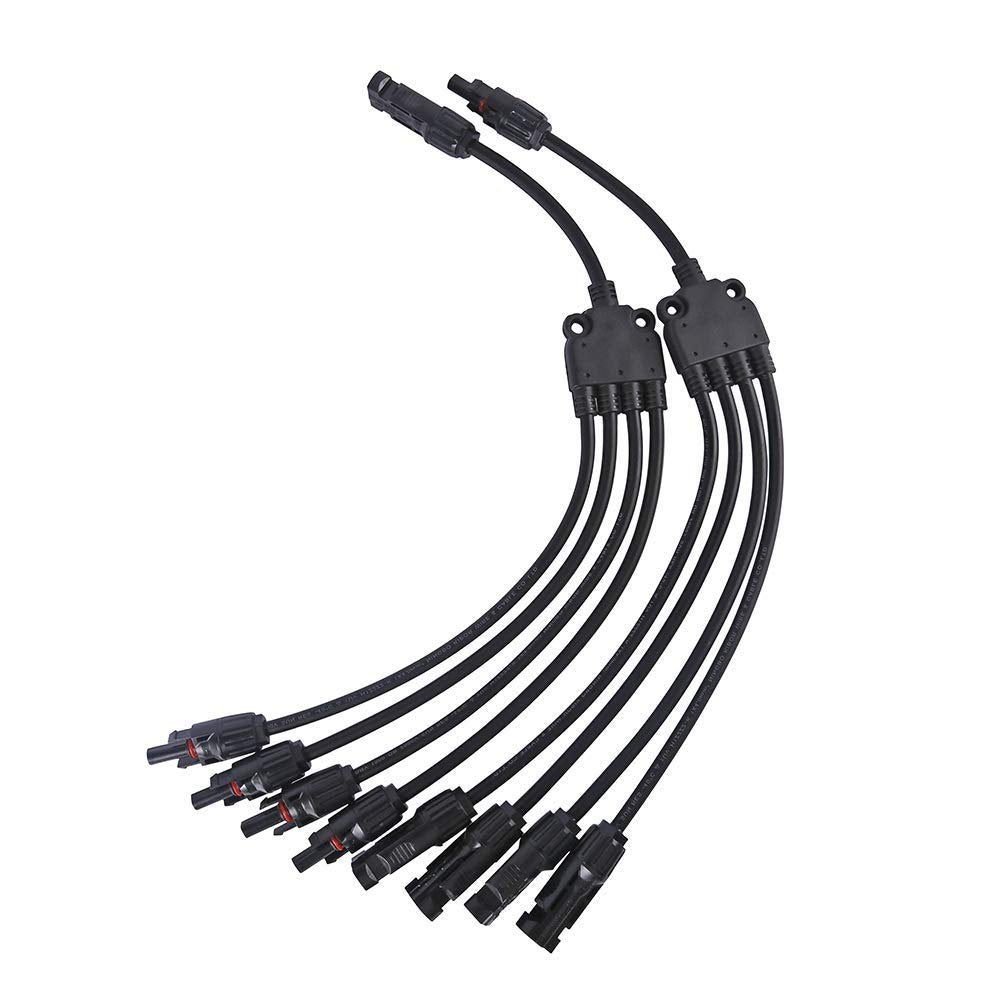

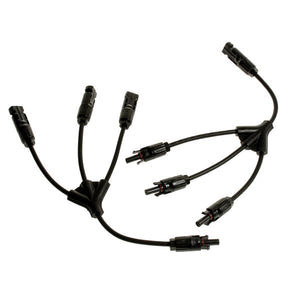

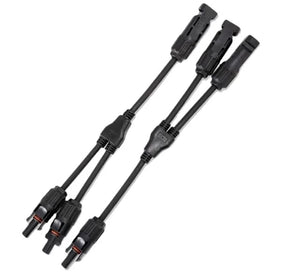

The Multi-branch connectors with 2 inputs create a parallel connection between two solar panels. Increase the current rating of the PV string with safe and water-proof connectors. Ideal for off grid , grid tie and hybrid installations.
- Insulation material PPO
- Rated Voltage 1500V DC
- Rated Current 50A
- Test voltage 6KV(50Hz,1Min)
- Contact material copper, tin-plated
- Contact resistance less than 0.5 m ohm
- Degree of protection IP67
- Pin dimension 4.0 MM
