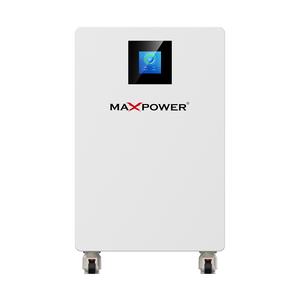

MaxPower MP5000-Ultra 51.2V 100Ah LiFePO4 Battery – 5.12 kWh Energy Storage System
3 people have this in their carts.
Estimate delivery times: 3-4 days
Guarantee Safe Checkout
Description
High-Performance Scalable Solar Battery for Residential & Commercial Use
Power your home or business with the MAXPOWER MP5000-Ultra , a high-capacity, ultra-reliable LiFePO4 battery system engineered for long-term energy storage and optimal performance. Designed with Grade A LiFePO4 cells and advanced safety features, this modular battery offers exceptional scalability, efficiency, and durability—making it ideal for off-grid solar systems, hybrid power setups, and grid-tied energy backup applications.
Whether you're looking to store solar energy from rooftop panels or ensure uninterrupted power during outages, the MP5000-Ultra delivers clean, sustainable energy when you need it most.
✅ Key Features:
- High Energy Density : 5.12 kWh per unit (51.2V x 100Ah)
- Fast Charge & Discharge : Supports up to 5.12 kW discharge power
- Long Cycle Life : Up to 6,000 cycles at 80% Depth of Discharge (DoD)
- Safe & Stable Chemistry : Built with Lithium Iron Phosphate (LiFePO4) technology
- Scalable System : Expandable up to 76.8 kWh by connecting up to 15 units in parallel
- Wide Operating Range : Functions reliably from -20°C to 55°C
- Multiple Communication Options : CAN, RS485, RS232 for seamless integration
- Certified Quality : CE and UN38.3 certified for global compliance and safety
🛠️ Easy Integration & Installation
The MP5000-Ultra is compatible with major Power Conversion Systems (PCS) brands and supports both floor-standing and wall-mount installation. Its compact design (630x420x145 mm) and lightweight build (47.3 kg) allow for flexible deployment in various environments, including homes, commercial buildings, and industrial sites.
With built-in short-circuit protection and an IP20 rating, this battery ensures safe operation under standard indoor conditions.
🔋 Specifications – Technical Datasheet
|
Category
|
Specification
|
|---|---|
|
Model Number
|
MP5000-Ultra
|
|
Nominal Voltage
|
51.2 Vdc
|
|
Nominal Capacity
|
100 Ah
|
|
Battery Energy
|
5.12 kWh
|
|
Charge Current
|
50A
|
|
Charge Power
|
2.56 kW
|
|
Discharge Current
|
100A
|
|
Discharge Power
|
5.12 kW
|
|
Short Circuit Current
|
350A
|
|
Cycle Life
|
6,000 cycles @ 80% DoD / 25°C / 0.5C
|
|
End of Life (EOL)
|
60% remaining capacity
|
|
Communication Interface
|
CAN, RS485, RS232
|
|
Display
|
Color touchscreen
|
|
Dimensions (W x D x H)
|
630 x 420 x 145 mm
|
|
Weight
|
47.3 kg
|
|
Installation Type
|
Floor stand or wall mount
|
|
Operating Temperature
|
Charging: 0°C to 55°C / Discharging: -20°C to 55°C
|
|
Storage Humidity
|
≤95% RH
|
|
Max Operating Altitude
|
≤2000m
|
|
Protection Rating
|
IP20
|
|
Cell Technology
|
LiFePO4 (Lithium Iron Phosphate)
|
|
Scalability
|
Up to 15 batteries in parallel
|
|
Compliance & Certificates
|
CE, UN38.3 (other certifications available upon request)
|
