Luminey MonaWall SE5 LiFePO4 Lithium Battery 5kWh by SUNWODA
Description

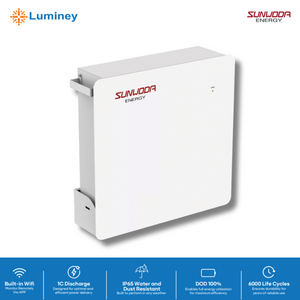

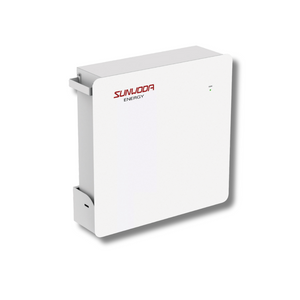

Luminey MonaWall SE5 Lithium Battery (5kWh)
The Luminey MonaWall SE5 is a high-performance LiFePO4 battery designed for residential and commercial energy storage. With 6000 life cycles, 100% Depth of Discharge (DOD), and built-in WIFI monitoring, it ensures efficient and reliable energy storage. Its IP65 rating makes it suitable for both indoor and outdoor installation.
Key Features
- 1C Discharge Rate – Provides optimal and efficient power delivery.
- Built-in WIFI – Enables remote monitoring via a mobile app.
- 100% Depth of Discharge (DOD) – Allows full energy utilization for maximum efficiency.
- 6000 Life Cycles – Ensures long-term durability and performance.
- IP65 Water & Dust Resistance – Suitable for all weather conditions.
- Quick Plug & Unplug DC Terminal – Simplifies installation and maintenance.
- Anti-Expansion Design & Built-in Heater – Enhances battery lifespan and performance in various environments.

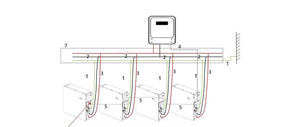

- Scalable – Supports up to 16 batteries in parallel, reaching a total capacity of 80kWh.
- 7-Year Warranty – Standard 6-year warranty, extendable to 7 years when connected to WIFI.

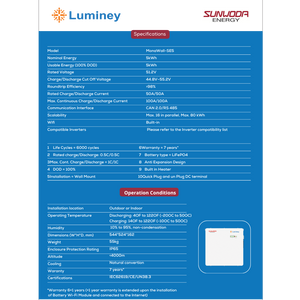

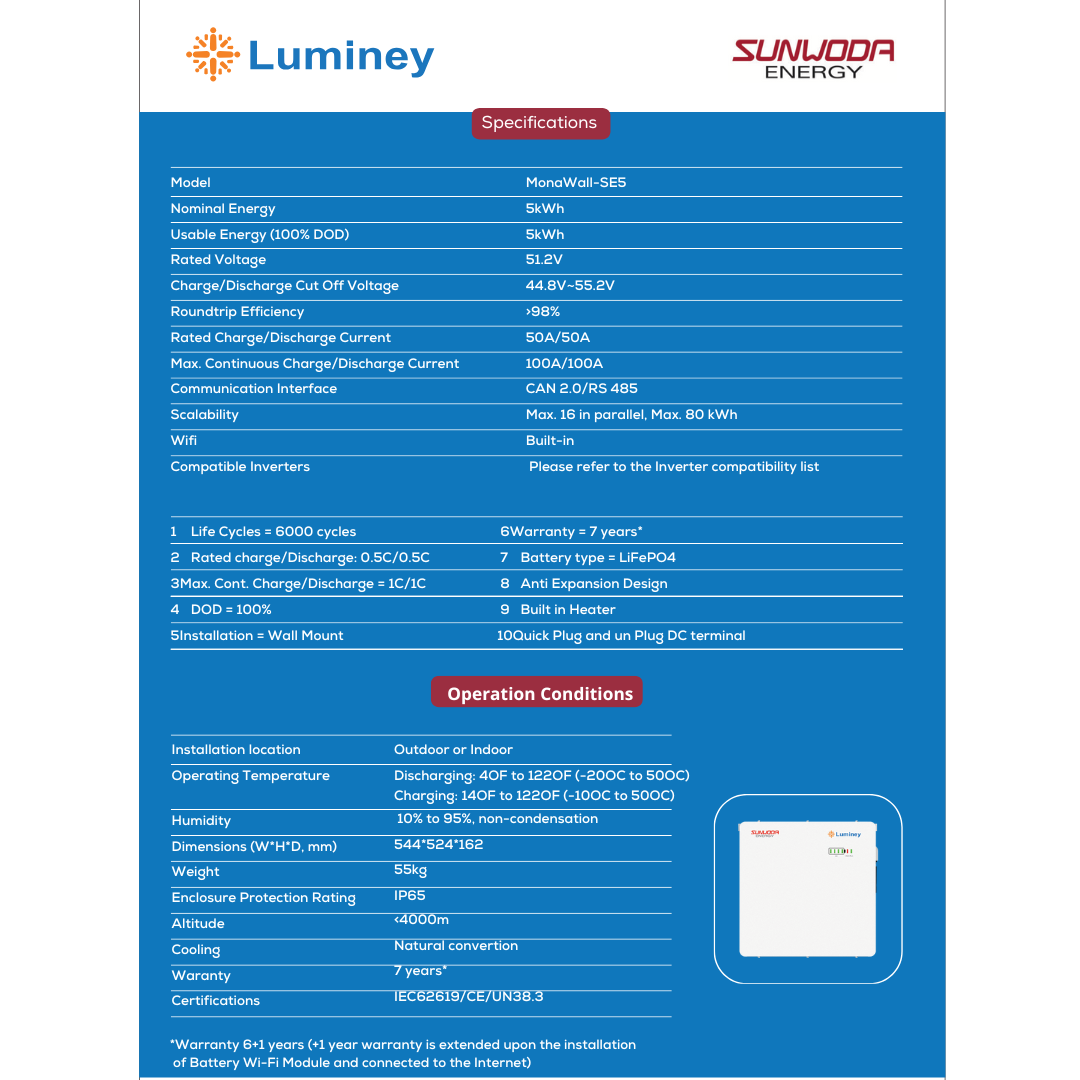

Specifications
| Specification | Details |
|---|---|
| Model | MonaWall SE5 |
| Nominal Energy | 5kWh |
| Usable Energy (100% DOD) | 5kWh |
| Rated Voltage | 51.2V |
| Charge/Discharge Voltage | 44.8V ~ 55.2V |
| Roundtrip Efficiency | >98% |
| Rated Charge/Discharge Current | 50A / 50A |
| Max. Continuous Charge/Discharge | 100A / 100A |
| Communication Interface | CAN 2.0 / RS 485 |
| Scalability | Max. 16 in parallel (80kWh) |
| Installation | Wall-mounted |
| Weight | 55kg |
| Dimensions (WHD) | 544 × 524 × 162 mm |
| Operating Temperature | Charging: -10°C to 50°CDischarging: -20°C to 50°C |
| Humidity | 10% to 95%, non-condensing |
| Altitude Limit | <4000m |
| Cooling | Natural convection |
| Enclosure Protection | IP65 (water & dust resistant) |
| Certifications | IEC62619 / CE / UN38.3 |
| Compatible Inverters | Refer to compatibility list |
| Warranty | 6+1 years (with WiFi module) |
The Luminey MonaWall SE5 is a robust energy storage solution, offering high efficiency, long life, and smart monitoring capabilities, making it ideal for off-grid and hybrid solar systems.
