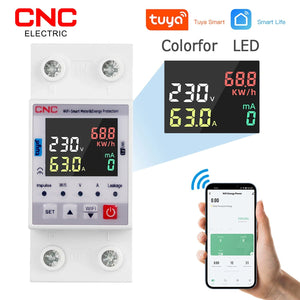

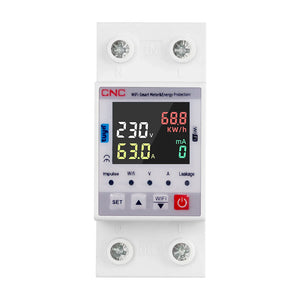

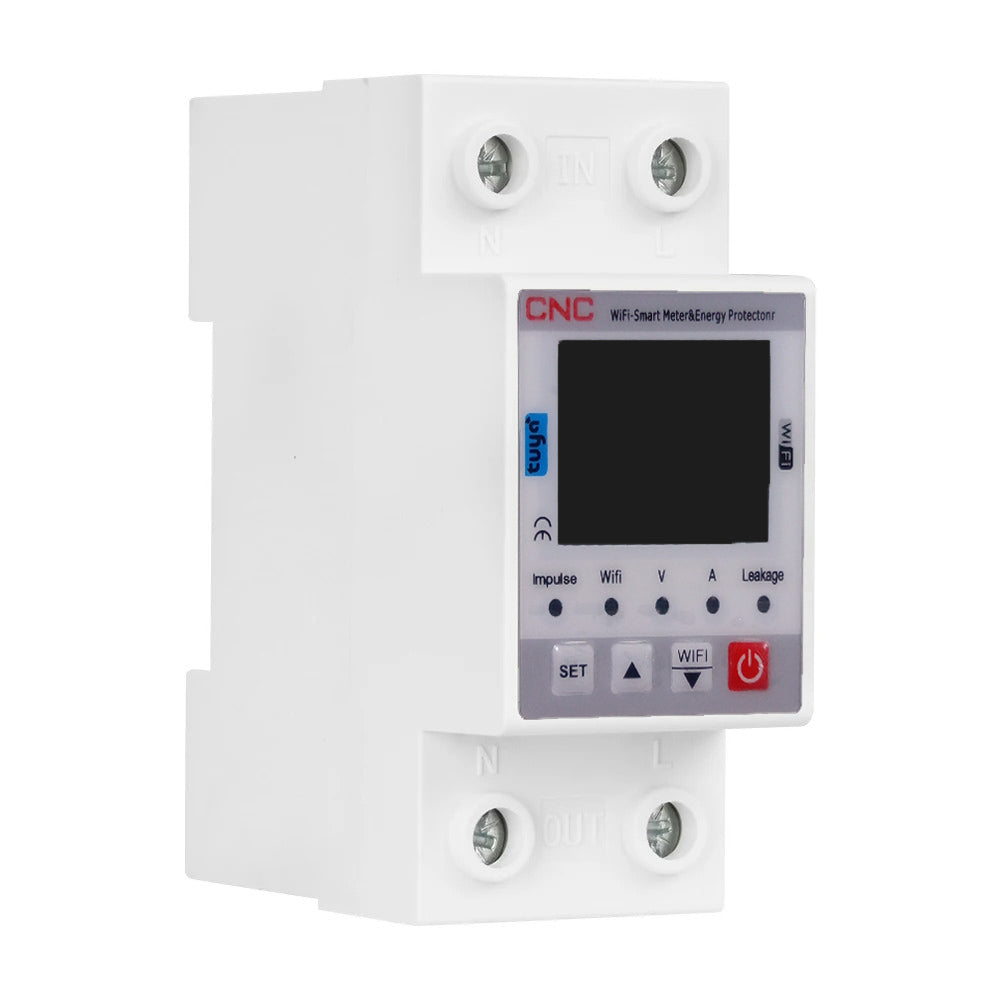

CNC YC7VA-WIFI KWH 63A WIFI Protector With Voltage Current and Leakage protection Mini 10in1

The CNC YC7VA-WIFI KWH 63A WIFI Protector is a comprehensive, smart device that provides protection and monitoring for electrical systems. Below are its key features and specifications:

Key Features:

1. Power On Delay Timer

2. Prepaid Meter Function:

   • Enables monitoring of power consumption and prepaid electricity features.

3. Remote Control via Smartphone:

   • ON/OFF Control: Allows you to control the device remotely from anywhere at any time using your phone.
   • Smart Integration: Compatible with the SmartLife TUYA app to monitor and manage the device.

4. Real-Time Monitoring:

   • View real-time data for current, voltage, leakage current, and total kWh directly from your phone.

5. Timer Function:

   • The device has a built-in timer feature within the SmartLife TUYA app, enabling you to set specific times for operation.

6. Adjustable Protection Settings:

   • Under-Voltage Protection: Adjustable range from 85V to 220V (default: 170V).
   • Over-Voltage Protection: Adjustable range from 110V to 300V (default: 275V).
   • Over-Current Protection: Adjustable range from 1A to 63A (default: 63A).
   • Earth Leakage Protection: Adjustable range from 10-300mA.

Specifications:

• Voltage Protection:
  • Under-voltage: 85V to 220V (adjustable, default: 170V)
  • Over-voltage: 110V to 300V (adjustable, default: 275V)
• Current Protection: 1A to 63A (adjustable, default: 63A)
• Earth Leakage Protection: 10-300mA
• Current Leakage Action Time: ~500ms
• Power Consumption: < 2W
• WiFi: Only supports 2.4G Wireless Network, NOT for 5G

This smart WIFI Protector is ideal for those who need real-time monitoring, remote control, and adjustable protections for various electrical parameters, offering a high level of convenience and safety for homes and businesses.
