CHINT NXU-IIG 40/500 2P 500V DC Surge Protection Device (SPD)
Description

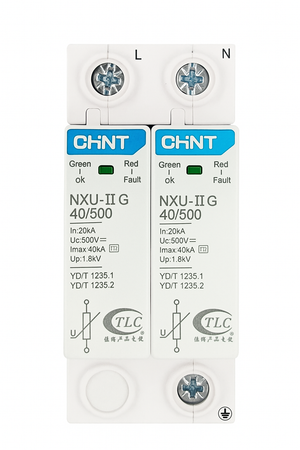

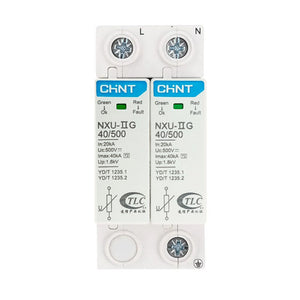

CHINT SPD NXU-IIG 40/500 – Reliable Surge Protection Device
The CHINT NXU-IIG 40/500 Surge Protection Device (SPD) is designed to safeguard your electrical systems from transient overvoltage and lightning surges. With advanced protection technology and high durability, it ensures the safety and longevity of your equipment.
Key Features:
- Model: NXU-IIG 40/500
- Nominal Discharge Current (In): 20kA
- Maximum Discharge Current (Imax): 40kA
- Continuous Operating Voltage (Uc): 500V
- Voltage Protection Level (Up): 1.8kV
-
Status Indicator:
- Green = OK (SPD working)
- Red = Fault (replacement required)
- Standards: YD/T 1235.1 & YD/T 1235.2 Certified
- Application: Industrial, commercial, and residential power systems
